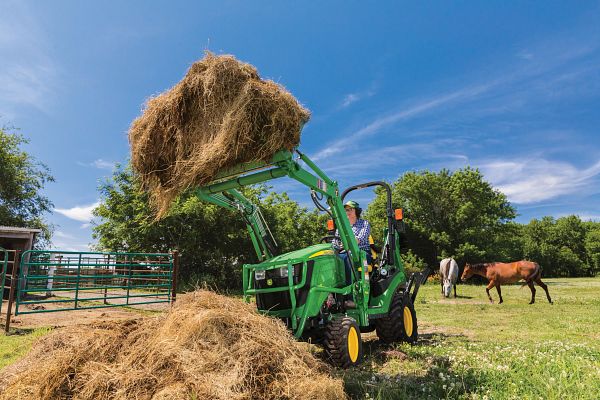

New Model Year 2024 1025R Sub-Compact Tractor

Specifications

Compare >>> Select up to 2 models to compare specifications

John DeereModel Year 2024 1025R Sub-Compact Tractor

Add Model --Please Select-- 1023E (Model year 2021) 1023E (Model year 2022) 1023E (Model year 2023) 2025R (Model year 2023) CK2610 HST BX2680-1 Tractor eMax 22 HST Max 26 XLT

Add Model --Please Select-- 1023E (Model year 2021) 1023E (Model year 2022) 1023E (Model year 2023) 2025R (Model year 2023) CK2610 HST BX2680-1 Tractor eMax 22 HST Max 26 XLT

Engine power (gross)	SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm
Power take-off (PTO) power	12.8 kW 17.2 hp
Steering hydraulics	13.2 L/min 3.5 gpm
Implement hydraulics	13.2 L/min 3.5 gpm
Hitch type	Limited Category 1
Lift capacity, 24-in. behind link arms	344 kg 758 lb
Standard transmission; forward/reverse	Hydrostatic - two range
Cruise control	Standard
Approximate shipping weight (open-station; cab)	Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb
Wheelbase	1450 mm 57.1 in.

Family
Manufacturer	Yanmar®
Engine model	3TNV80F-NCJT
Engine power (gross)	SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 seconds
Power take-off (PTO) power	12.8 kW 17.2 hp
Rated engine speed	3200 rpm
Type	Diesel
Injection pump type	Indirect injection
Aspiration	Natural
Emissions compliance	Final Tier 4
Cylinders/displacement	Three cylinders: 1.267 L 77.3 cu in.
Number of cylinders	Three
Cylinder liners	Cast-in-block
Bore and stroke	80 x 84 mm 3.15 x 3.31 in.
Compression ratio	23.1:1
Lubrication	Pressurized
Cooling system	Water pump
Air cleaner	Dual element with mechanical restriction indicator
Engine torque at rated speed	53.1 Nm 39.2 lb-ft
Fuel tank capacity	24 L 6.3 U.S. gal.

Battery size	500 CCA
Alternator (12-V)	40 amp
Starter size	1.2 kW 1.6 hp

Type	Indirect injection
Fuel consumption

Standard transmission; forward/reverse	Hydrostatic - two range
Optional transmission; forward/reverse
Left-hand reverser	No
Transmission gear ranges
Final drive	Spur gear
Brakes	Wet disc (left-hand pedal)
Steering	Power
Clutch, wet/dry
Clutch disk diameter wet clutch
Axle capacity	Front 612 kg 1349 lb Rear 715 kg 1576 lb
Creeper	No
Cruise control	Standard
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm
Pump type	Single gear
Maximum operating pressure	138 bar 2000 psi
Draft control sensing	Position control
Remote control valves available	Three

Type	Limited Category 1
Lift capacity, 24-in. behind link arms	344 kg 758 lb

Standard	Rear: 540 rpm Mid: 2100 rpm
Optional
Control	Independent
Clutch	Wet disk
Brake (for mid and rear PTO)	Wet disk
Engagement method

Crankcase with filter	2.7 L 2.9 gal.
Transmission and hydraulic system	12.3 L 3.2 gal.

Type	Spur gear
Differential lock	Yes

Rollover protective structure	Type Foldable Yes
Platform - flat/straddle	One-piece semi flat
Gear shift location - console/floor	Left-hand side

Compliance
Visibility
Air conditioning, temperature differential	Heat only
Doors	Two
Noise rating
Seat equipment	Premium seat

Height
Wheelbase	1450 mm 57.1 in.
Front axle clearance	195 mm 7.7 in.
Turning radius with brakes
Turning radius without brakes	Outside front tire: 2.51 m 8.2 ft
Limited slip differential	No
Approximate shipping weight (open-station; cab)	Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb

Front	R3 Turf: 18x8.50-10 R3 Turf Radial: 18x8.50-10 R4: 18x8.5-10
Rear	R3 Turf: 26x12-12 R4: 26x12-12
Front tread range	931 mm 36.7 in.
Rear tread spacing	895 mm 35.2 in.

Toolbox	Yes
Tilt steering wheel
12-V Outlet
