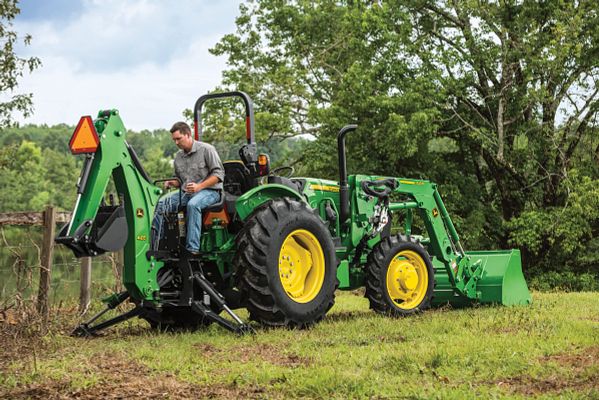

5065E Utility Tractor

Specifications

Compare >>> Select up to 2 models to compare specifications

John Deere5065E Utility Tractor

Add Model --Please Select-- 4066M (Model year 2016) Gear 4WD / HST 4WD 4066R (Model year 2016) Gear 4WD / HST 4WD 5055E (Model year 2016) 5075E (Model year 2016) M6060 (Utility comparison) 6525 2WD 6530 4WD 7060 Cab

Add Model --Please Select-- 4066M (Model year 2016) Gear 4WD / HST 4WD 4066R (Model year 2016) Gear 4WD / HST 4WD 5055E (Model year 2016) 5075E (Model year 2016) M6060 (Utility comparison) 6525 2WD 6530 4WD 7060 Cab

Engine description	John Deere PowerTech 3029
Engine displacement	3 cylinders: 2.9 L 179 cu in.
Rated engine power	At 2100 rpm: 49.9 kW 67 hp
Rated PTO power (hp SAE)	At 2100 rpm: 36.5 kW 49 PTO hp
Maximum PTO power
Transmission type	Standard: 9F/3R SyncShuttle Optional: 12F/12R PowrReverser
Hydraulic pump rated output	68.9 L/min 18.2 gpm
Rear hitch category (SAE designation)	Category 2; convertible to 1
Base machine weight
Maximum engine power

Description	John Deere PowerTech 3029
Engine type
Engine family
Rated speed
Aspiration	Turbocharged
Cylinders liners	Wet sleeved
Emission level
After treatment type
Displacement	3 cylinders: 2.9 L 179 cu in.

Rated power	At 2100 rpm: 49.9 kW 67 hp
Rated PTO power (hp SAE)	At 2100 rpm: 36.5 kW 49 PTO hp
Maximum PTO power
Power boost
Engine peak torque
PTO torque rise
Intelligent Power Management (available in transport and/or mobile PTO applications)
Maximum engine power

Type	Standard: 9F/3R SyncShuttle Optional: 12F/12R PowrReverser
Reverser	Optional
Clutch; wet/dry	Dry on 9F/3R SyncShuttle Wet on 12F/12R PowrReverser
Creeper	Option on 9F/3R transmission models

Type	Open Center
Pump rated output	Standard: 68.9 L/min 18.2 gpm
Available flow at a single rear SCV	43.1 L/min 11.4 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)
Number of mid selective control valves (SCVs)
Number of front selective control valves (SCVs)
Joystick SCV control	2WD: FIK MFWD: Standard
SCV control

Hitch draft control load sense type	Mechanical
Remote control valves available	Standard: 1 Optional: 2
Hitch category (SAE designation)	Category 2; convertible to 1
Maximum lift capacity behind lift points
Sensing type	Top link
Rear axle differential lock
Lift capacity at standard frame

Drawbar category
Maximum vertical load

Type	Standard: Independent 540 Optional: Independent 540E (12x12)
Engine rpm (at rated PTO speeds)
PTO actuation	Mechanical (lever on 9x3) Electrohydraulic with wet clutch (12x12)
Ground speed PTO option availability
Multispeed PTO option availability

Category
Electric power
Standard lift capacity
Front power take-off (PTO)
PTO speed

Type
Final drive type	Planetary
Differential controls	Mechanical (pedal)
Axle type	Flanged
Brakes, type and control	Hydraulic wet disc
Rear differential lock
Load rating

Type
Front axle differential lock
Load rating

Front	2WD: 7.5-16 R1 MFWD: 9.5-24 R1
Rear	2WD: 16.9-28 R1 MFWD: 16.9-28 R1
Wheel tread range
Turning radius with brakes	2WD: 3.1 m 10.6 ft
Turning radius without brakes	2WD: 3.5 ft 11.5 ft, in.

Alternator size
Battery options
Total cold cranking amps
Type of bulb in beacon (Halogen, Zenon, LED)
Type of bulb in headlight (Halogen, Zenon, LED)
Working lights
dB(A) rating for backup alarm

Rollover protective structure, OOS	Rigid - foldable - telescopic Foldable, 2-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side
Seat
Cab suspension
Instructional seat
Display
Radio
Inner cab volume
dB(A) rating
Cab glass area
Front visibility
Safety glass rating

Wheelbase	2WD and MFWD: 2050 mm 80.7 in.
Overall length
Drawbar clearance
Front axle center
Approximate shipping weight, Open;Cab	MFWD: Open: 2550 kg 5621 lb Cab: 3250 kg 7165 lb
Overall height

Base machine weight
Maximum ballast level
Maximum permissible weight

Crankcase oil volume
Fuel tank	Standard: Open: 68 L 18 U.S. gal. Cab: 82 L 21 U.S. gal.
Diesel exhaust fluid (DEF) tank
Cooling system
Transmission-hydraulic system

Interval for engine oil change
Interval for hydraulic/transmission oil change
Interval for engine coolant change

Loader
Lift capacity at full height
Maximum lift height

Guidance
Telematic
Remote diagnostics

Country of manufacture	Pune, India
Side slope rating
Uphill/downhill slope rating

Drive type
Midrollers
Track width
Tread spacing
