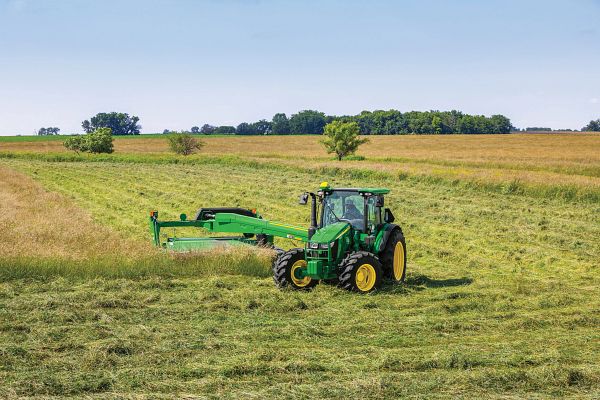

5125M PowrQuad™ PLUS or Powr8™ Utility Tractor

Specifications

Engine description	John Deere PowerTech™ PWL
Engine displacement	4 cylinder: 4.5 L 276 cu in.
Rated engine power	At 2200 per ISO 97/68/EC: 91.9 kW 123.2 hp
Maximum engine power	95.6 kW 128.2 hp
Rated PTO power (hp SAE)	At 2100 per SAE: 82.0 kW 110 PTO hp
Maximum PTO power
Transmission type	Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Powr8™ 32F/16R with creeper
Hydraulic pump rated output	97 L/min 25.6 gpm
Rear hitch category (SAE designation)	Category 2; convertible to 1
Base machine weight
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Description	John Deere PowerTech PWL
Engine type
Engine family	MJDXL04.5315-015
Rated speed
Aspiration	Turbocharged/air-to-air aftercooled
Cylinders liners	Wet sleeved
Emission level	Final Tier 4
After treatment type
Displacement	4 cylinder: 4.5 L 276 cu in.

Rated power	At 2200 per ISO 97/68/EC: 91.9 kW 123.2 hp
Rated PTO power (hp SAE)	At 2100 per SAE: 82.0 kW 110 PTO hp
Maximum PTO power
Intelligent Power Management (IPM)
Power boost	At 1900 rpm: 4 percent
Maximum engine power	95.6 kW 128.2 hp
Engine peak torque	At 1600 rpm: 519 Nm 383 lb-ft
Drawbar power
PTO torque rise	At 1600 rpm: 30 percent
Fuel injection system and control
Air cleaner type
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Type	Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Powr8™ 32F/16R with creeper
Reverser	Left hand, electrohydraulic
Clutch; wet/dry	Wet
Creeper	Powr8™ 32F/16R with creeper

Type	Open center
Pump rated output	97 L/min 25.6 gpm
Available flow at a single rear SCV	73 L/min 19.3 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)	Two, up to three total
Number of mid selective control valves (SCVs)	Two, up to three total
Number of front selective control valves (SCVs)
Joystick SCV control	Optional
Auxiliary hydraulic features
SCV control	Mechanical

Hitch draft control load sense type	Electrohydraulic
Remote control valves available	Standard: Two Optional: Three
Hitch category (SAE designation)	Category 2; convertible to 1
Maximum lift capacity behind lift points	Standard: 3164 kg 6975 lb Optional: 3569 kg 7868 lb
Lift capacity at standard frame
Sensing type	Lower link
Rear axle differential lock	Electrohydraulic

Drawbar category	Category 2
Maximum vertical load	Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb

Type	Independent, 34.9 mm (1.375 in) Standard: 540/540 Economy (6 spline) Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft
Engine rpm (at rated PTO speeds)	540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm
Economy PTO speeds
Reverse PTO speeds
Multispeed PTO option availability
Ground speed PTO option availability
PTO actuation	Electrohydraulic

Category	Category 2
Electric power
Standard lift capacity	1931 kg 4257 lb
Front power take-off (PTO)	1000 rpm (21 spline) 34.9 mm (1.375 in.)
PTO speed	1000 at 2200 rpm

Type
Final drive type	Inboard planetary
Differential controls	Electrohydraulic
Axle type	Flanged
Brakes, type and control	Hydraulic wet disc
Rear differential lock
Load rating

Type
Front axle differential lock
Load rating

Rear	MFWD: 18.4R30 (460/85R30) R1W Radial
Wheel tread range	MFWD: front: 1299-1997 mm 51.1-78.6 in.
Turning radius with brakes	MFWD: 3.85 m 12.6 ft
Turning radius without brakes	MFWD: 4.0 m 13.1 ft
Central Tire Inflation System (CTIS)
Front

Tread spacing
Drive type
Track width
Mid-rollers

Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes

Alternator size	Standard: 120 amp Optional: 200 amp
Battery options	12 V
Working lights	Standard: Halogen Optional: LED
Type of bulb in headlight (Halogen, Zenon, LED)	Standard: Halogen Optional: LED
Type of bulb in beacon (Halogen, Zenon, LED)	Optional: LED
dB(A) rating for backup alarm
Total cold cranking amps

Rollover protective structure, OOS
Seat	Standard: Mechanical suspension Optional: air ride or premium air ride
Cab suspension
Instructional seat	Optional
Display	Digital Dash Display with three liquid crystal displays (LCDs)
Radio	Optional
Inner cab volume
dB(A) rating	78 dBA
Cab glass area
Safety glass rating
Front visibility

Wheelbase	MFWD: 2350 mm 92.5 in.
Overall width
Overall length
Overall height
Drawbar clearance
Front axle center
Approximate shipping weight, Open;Cab	MFWD: Cab: 4175 kg 9185 lb

Base machine weight
Maximum ballast level
Maximum permissible weight

Crankcase oil volume
Fuel tank	Standard: Cab: 160.5 L 42.4 U.S. gal.
Diesel exhaust fluid (DEF) tank	12.0 L 3.17 U.S. gal.
Cooling system
Transmission-hydraulic system

Interval for engine oil change
Interval for hydraulic/transmission oil change
Interval for engine coolant change

Loader
Lift capacity at full height
Maximum lift height
Leveling type

Guidance	Optional: Integrated AutoTrac™ Ready
Telematic	Standard: JDLink™ Capable Optional: JDLink™ hardware and subscription
Remote diagnostics

AutoTrac ready
ISOBUS ready
CommandCenter video inputs
Immobilizer
Side slope rating
Uphill/downhill slope rating
Country of manufacture	Augusta, GA, USA

Date collected	4/15/2021
