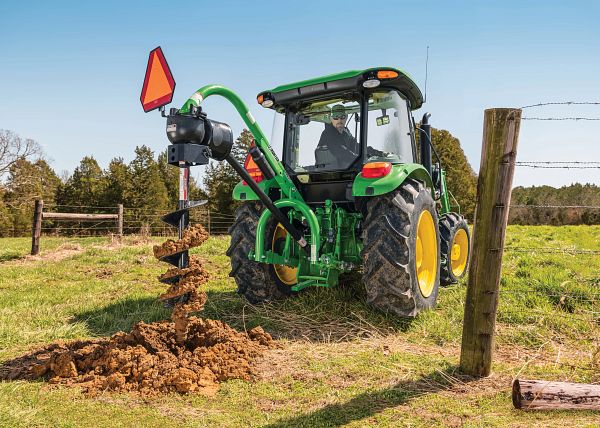

5075E Utility Tractor

Specifications

Compare >>> Select up to 2 models to compare specifications

John Deere5075E Utility Tractor

Add Model --Please Select-- 5050E (Model year 2023) 5060E (Model year 2023) 5067E (Model year 2023) 5075GL (Model year 2023) 5075GN (Model year 2023) 5075GV (Model year 2023) 5075M (Model year 2023) 5090E (Model year 2023) 5090EL (Model year 2023) 5090GN (Model year 2023) 5090GV (Model year 2023) 5095M (Model year 2023) 5100E (Model year 2023) 5100GN (Model year 2023) 5105M (Model year 2023) 5105MH (Model year 2023) 5105ML (Model year 2023) 5120M (Model year 2023) 5120ML (Model year 2023) 5130M (Model year 2023) 5130ML (Model year 2023) Kubota M4D-071

Add Model --Please Select-- 5050E (Model year 2023) 5060E (Model year 2023) 5067E (Model year 2023) 5075GL (Model year 2023) 5075GN (Model year 2023) 5075GV (Model year 2023) 5075M (Model year 2023) 5090E (Model year 2023) 5090EL (Model year 2023) 5090GN (Model year 2023) 5090GV (Model year 2023) 5095M (Model year 2023) 5100E (Model year 2023) 5100GN (Model year 2023) 5105M (Model year 2023) 5105MH (Model year 2023) 5105ML (Model year 2023) 5120M (Model year 2023) 5120ML (Model year 2023) 5130M (Model year 2023) 5130ML (Model year 2023) Kubota M4D-071

Engine description	John Deere PowerTech™ 3029 EWR
Engine displacement	3 cylinders: 2.9 L 179 cu in.
Rated engine power	At 2100 rpm: 55 kW 75 hp
Maximum engine power	55 kW 75 hp
Rated PTO power (hp SAE)	At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp)
Maximum PTO power
Transmission type	Standard: SyncShuttle™ 9F/3R Optional: PowrReverser™ 12F/12R
Hydraulic pump rated output	68.8 L/min 18.2 gpm
Rear hitch category (SAE designation)	Category 2; convertible to 1
Base machine weight
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Description	John Deere PowerTech™ 3029 EWR
Engine type	3029HPY110
Engine family	NJDXL02.9339
Rated speed	2100 rpm
Aspiration	Turbocharged
Cylinders liners	Wet sleeved
Emission level	Final Tier 4
After treatment type	DOC/EGR
Displacement	3 cylinders: 2.9 L 179 cu in.

Rated power	At 2100 rpm: 55 kW 75 hp
Rated PTO power (hp SAE)	At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp)
Maximum PTO power
Intelligent Power Management (IPM)
Power boost	0 percent
Maximum engine power	55 kW 73.7 hp
Engine peak torque	At 1500 rpm: 304 Nm 224 lb-ft
Drawbar power
PTO torque rise	21 percent
Fuel injection system and control
Air cleaner type
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Type	Standard: SyncShuttle™ 9F/3R Optional: PowrReverser™ 12F/12R
Reverser	SyncShuttle™: No PowrReverser™: Yes
Clutch; wet/dry	SyncShuttle™: Dry PowrReverser™: Wet
Creeper	Kit available for OOS SyncShuttle™ 9F/3R transmission

Type	Open center
Pump rated output	68.8 L/min 18.2 gpm
Available flow at a single rear SCV	43.1 L/min 11.4 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)	Standard: One Optional: Two
Number of mid selective control valves (SCVs)	Standard: Zero Optional: Up to Three
Number of front selective control valves (SCVs)
Joystick SCV control	Mechanical
Auxiliary hydraulic features
SCV control

Hitch draft control load sense type	Mechanical
Remote control valves available	Standard: One Optional: Two
Hitch category (SAE designation)	Category 2; convertible to 1
Maximum lift capacity behind lift points	1448 kg 3192 lb
Lift capacity at standard frame
Sensing type	Top link
Rear axle differential lock

Drawbar category
Maximum vertical load	Road/field use (short position): 1120 kg 2470 lb Field use (fully extended): 760 kg 1675 lb

Type	SyncShuttle™: Independent 540 PowrReverser™: Independent 540/540E
Engine rpm (at rated PTO speeds)	540 at 2100 rpm 540E at 1588 rpm
Economy PTO speeds
Reverse PTO speeds
Multispeed PTO option availability
Ground speed PTO option availability
PTO actuation	SyncShuttle™: Mechanical (lever) PowrReverser™: Electrohydraulic

Category
Electric power
Standard lift capacity
Front power take-off (PTO)
PTO speed

Type	Flange
Final drive type	Planetary
Differential controls	Mechanical (pedal)
Axle type
Brakes, type and control	Hydraulic wet disc
Rear differential lock
Load rating

Type	Standard: Two-Wheel Drive (2WD) Optional: Mechanical Front Wheel Drive (MFWD)
Front axle differential lock
Load rating

Rear	2WD: 16.9-28 R1 Bias MFWD: 16.9-28 R1 Bias
Wheel tread range
Turning radius with brakes	2WD: 3.1 m 10.2 ft MFWD: 3.94 m 12.9 ft
Turning radius without brakes	2WD: 3.5 m 11.5 ft MFWD: 4.65 m 15.3 ft
Central Tire Inflation System (CTIS)
Front

Tread spacing
Drive type
Track width
Mid-rollers

Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes

Alternator size	OOS: 70 amp Cab: 110 amp
Battery options	12 V
Working lights	Standard: Halogen Premium Cab: LED
Type of bulb in headlight (Halogen, Zenon, LED)	OOS: Halogen Cab: LED
Type of bulb in beacon (Halogen, Zenon, LED)	Kit: Halogen
dB(A) rating for backup alarm
Total cold cranking amps

Rollover protective structure, OOS	Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side
Seat	Standard: Mechanical Premium Cab: Air Ride
Cab suspension
Instructional seat	Optional
Display	Simple automotive-style instrument cluster
Radio	Optional
Inner cab volume
dB(A) rating	81 dBA
Cab glass area
Safety glass rating
Front visibility

Wheelbase	2WD and MFWD: 2050 mm 80.7 in.
Overall width
Overall length	3639 mm 143.3 in.
Overall height
Drawbar clearance
Front axle center
Approximate shipping weight, Open;Cab	2WD OOS: 2520 kg 5555 lb 2WD Cab 2989 kg 6590 lb MFWD OOS: 2735 kg 6029 lb MFWD Cab: 3090 kg 6812 lb

Base machine weight
Maximum ballast level
Maximum permissible weight

Crankcase oil volume
Fuel tank	OOS: 72.5 L 19 U.S. gal. Cab: 82 L 21 U.S. gal.
Diesel exhaust fluid (DEF) tank	Not Applicable
Cooling system
Transmission-hydraulic system

Interval for engine oil change
Interval for hydraulic/transmission oil change
Interval for engine coolant change

Loader
Lift capacity at full height
Maximum lift height
Leveling type

Guidance
Telematic
Remote diagnostics

AutoTrac ready	No
ISOBUS ready	No
CommandCenter video inputs
Immobilizer
Side slope rating
Uphill/downhill slope rating
Country of manufacture	Sub assembly in Pune, India, Final assembly in Augusta, GA

Date collected	6-Jan-2023
