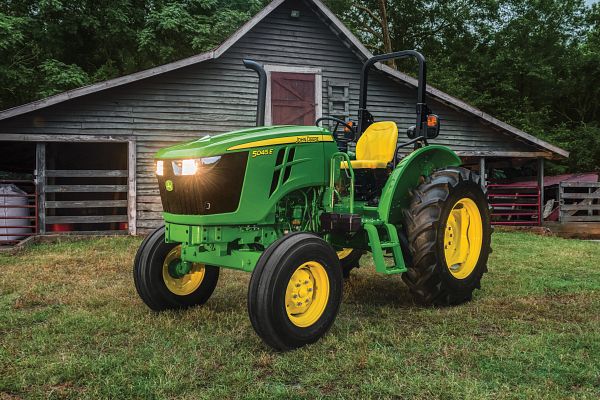

5045E Utility Tractor

Specifications

Engine description	John Deere PowerTech 3029
Engine displacement	3 cylinders: 2.9 L 179 cu in.
Rated engine power	At 2100 rpm: 37.4 kW 50 hp
Rated PTO power (hp SAE)	At 2100 rpm: 27.6 kW (37 PTO)
Maximum PTO power	@ 1800 RPM Open Station: 28.5kw (38hp)
Transmission type	Standard: 9F/3R SyncShuttle
Hydraulic pump rated output	Standard: 66.1 L/min 17.5 gpm
Rear hitch category (SAE designation)	Category 2; convertible to 1
Base machine weight
Maximum engine power

Description	John Deere PowerTech 3029
Engine type
Engine family
Rated speed
Aspiration	Turbocharged
Cylinders liners	Wet sleeved
Emission level
After treatment type
Displacement	3 cylinders: 2.9 L 179 cu in.

Rated power	At 2100 rpm: 37.4 kW 50 hp
Rated PTO power (hp SAE)	At 2100 rpm: 27.6 kW (37 PTO)
Maximum PTO power	@ 1800 RPM: Open Station - 28.5kw (38hp)
Power boost
Engine peak torque
PTO torque rise
Intelligent Power Management (available in transport and/or mobile PTO applications)
Maximum engine power

Type	Standard: 9F/3R SyncShuttle
Reverser	No
Clutch; wet/dry	Dry
Creeper

Type	Open Center
Pump rated output	Standard: 66.1 L/min 17.5 gpm
Available flow at a single rear SCV	43.4 L/min 11.5 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)	standard: 1 Optional: 2
Number of mid selective control valves (SCVs)	Standard: 0 Optional: 2
Number of front selective control valves (SCVs)
Joystick SCV control	2WD: FIK MFWD: Standard
SCV control

Hitch draft control load sense type	Mechanical
Remote control valves available	Standard: 1 Optional: 2
Hitch category (SAE designation)	Category 2; convertible to 1
Maximum lift capacity behind lift points	OECD hitch lift cap at 24 behind: 3192 lb 1448 kg
Sensing type	Top link
Rear axle differential lock
Lift capacity at standard frame

Drawbar category
Maximum vertical load

Type	Standard: Independent 540
Engine rpm (at rated PTO speeds)	540 at 2100 rpm
PTO actuation	Mechanical (lever)
Ground speed PTO option availability
Multispeed PTO option availability

Category
Electric power
Standard lift capacity
Front power take-off (PTO)
PTO speed

Type
Final drive type	Planetary
Differential controls	Mechanical (pedal)
Axle type	Flanged
Brakes, type and control	Hydraulic wet disc
Rear differential lock
Load rating

Type
Front axle differential lock
Load rating

Front	2WD: 7.5-16 R1 MFWD: 9.5-24 R1
Rear	2WD: 13.6-28 R1 MFWD: 13.6-28 R1
Wheel tread range
Turning radius with brakes	2WD: 3.1 m 10.2 ft MFWD: 3.94 m 12.9 ft
Turning radius without brakes	2WD: 3.5 m 11.5 ft MFWD: 4.65 m 15.3 ft

Alternator size
Battery options
Total cold cranking amps
Type of bulb in beacon (Halogen, Zenon, LED)
Type of bulb in headlight (Halogen, Zenon, LED)
Working lights
dB(A) rating for backup alarm

Rollover protective structure, OOS	Rigid - foldable - telescopic Foldable, 2-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side
Seat	Mechanical
Cab suspension
Instructional seat
Display
Radio
Inner cab volume
dB(A) rating
Cab glass area
Front visibility
Safety glass rating

Wheelbase	2WD and MFWD: 2050 mm 80.7 in.
Overall length	3639 mm 143.3 in.
Drawbar clearance
Front axle center
Approximate shipping weight, Open;Cab	MFWD: 2525 kg 5566 lb
Overall height

Base machine weight
Maximum ballast level
Maximum permissible weight

Crankcase oil volume
Fuel tank	Standard: 72.5 L 19 U.S. gal.
Diesel exhaust fluid (DEF) tank
Cooling system
Transmission-hydraulic system

Interval for engine oil change
Interval for hydraulic/transmission oil change
Interval for engine coolant change

Loader
Lift capacity at full height
Maximum lift height

Guidance
Telematic
Remote diagnostics

Country of manufacture	Sub assembly in Pune, India, Final assembly in Augusta, GA
Side slope rating
Uphill/downhill slope rating

Drive type
Midrollers
Track width
Tread spacing
